Small Engine Propane Conversion
engines converted since 05/27/07
|
Someone once asked me about propane conversions for small utility engines.
I figured a picture is worth a thousand words so the next time the people
from Evans Janitorial came to do our floors, I took the opportunity to
photograph the propane engine on their polisher.
|
Be sure to REFRESH
each page on this site as I'm adding content on a daily basis. |
|

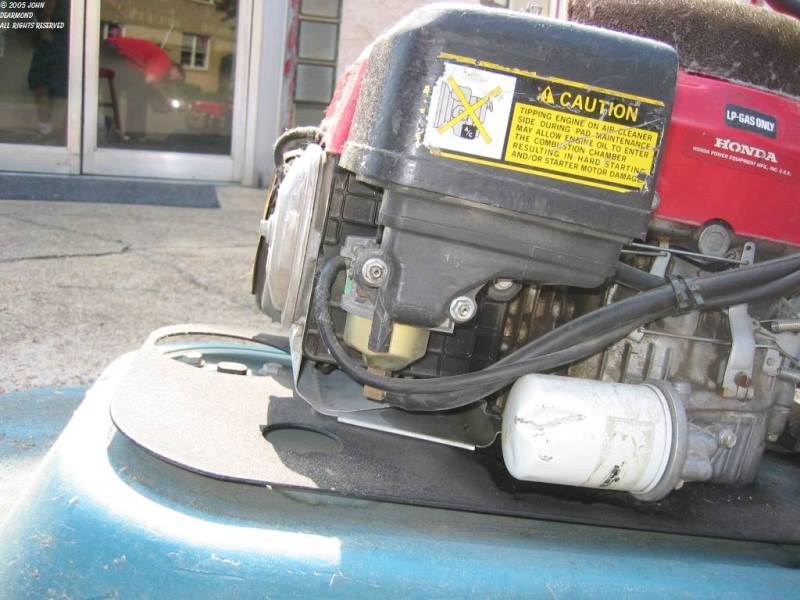

The carburetor. Conversion consisted of removing the gasoline main jet
and emulsion tube and inserting the propane nozzle. No other changes
required. Even the float bowl remains. |
 |
|
|
Another view of the carburetor. The left hand hose is the manifold
pressure feedback to the propane regulators |
 |
|
|

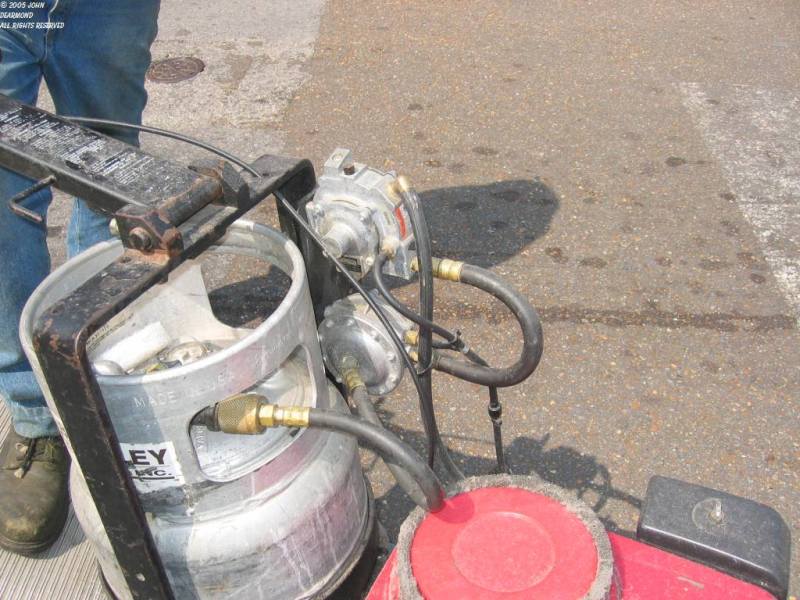

The regulators. The bottom unit is the pressure stepdown unit.
The top regulator is the zero-pressure regulator that feeds the propane to
the carburetor. The button in the center of the bottom regulator is
the "prime" button. This button bleeds some propane into the
intake before cranking and functions like a choke |
 |
|
|
A view of the other side of the regulators. The small hose is the
manifold pressure signal. |
 |
|
